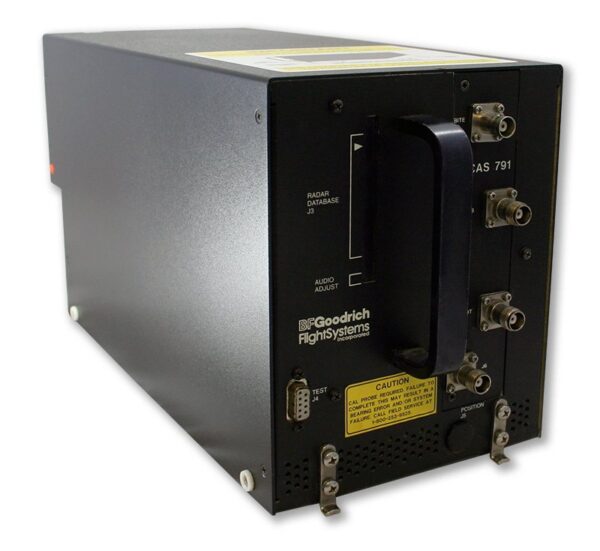

805-10001-004 TCAS TRANSMITTER/RECEIVER COMPUTER

Overview

• TCAS I System consisting of Transmitter Receiver Computer (TRC), Control/Display, L-band directional antenna, and omnidirectional antenna
• Tracks up to 35 intruder aircraft simultaneously
• Generates both aural & visual traffic advisories
• Selectable 5, 10 & 20 nmi horizontal display ranges
• Up to 35 nmi surveillance range
• +/- 10,000 ft. relative altitude tracking range
• “Look Up/Look Down” relative altitude display modes: Above Mode, Below Mode, Normal Mode
• STC’d for most popular turboprops & business jets
• Control/Display available in black or gray bezel, 5 or 28V lighting (see table below)
• TRC units available in rotorcraft or fixed wing versions, top or bottom directional antenna configuration (see table below)
